STEEL UTILITY TRAILERS

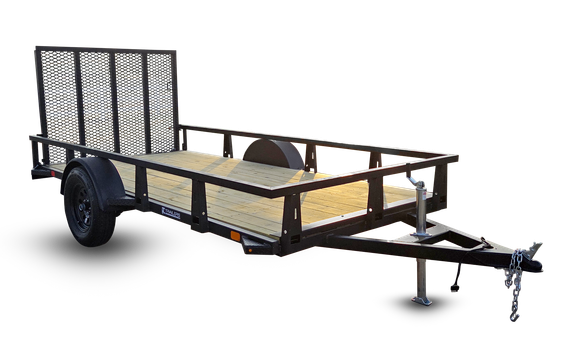

aut series sport haven trailer

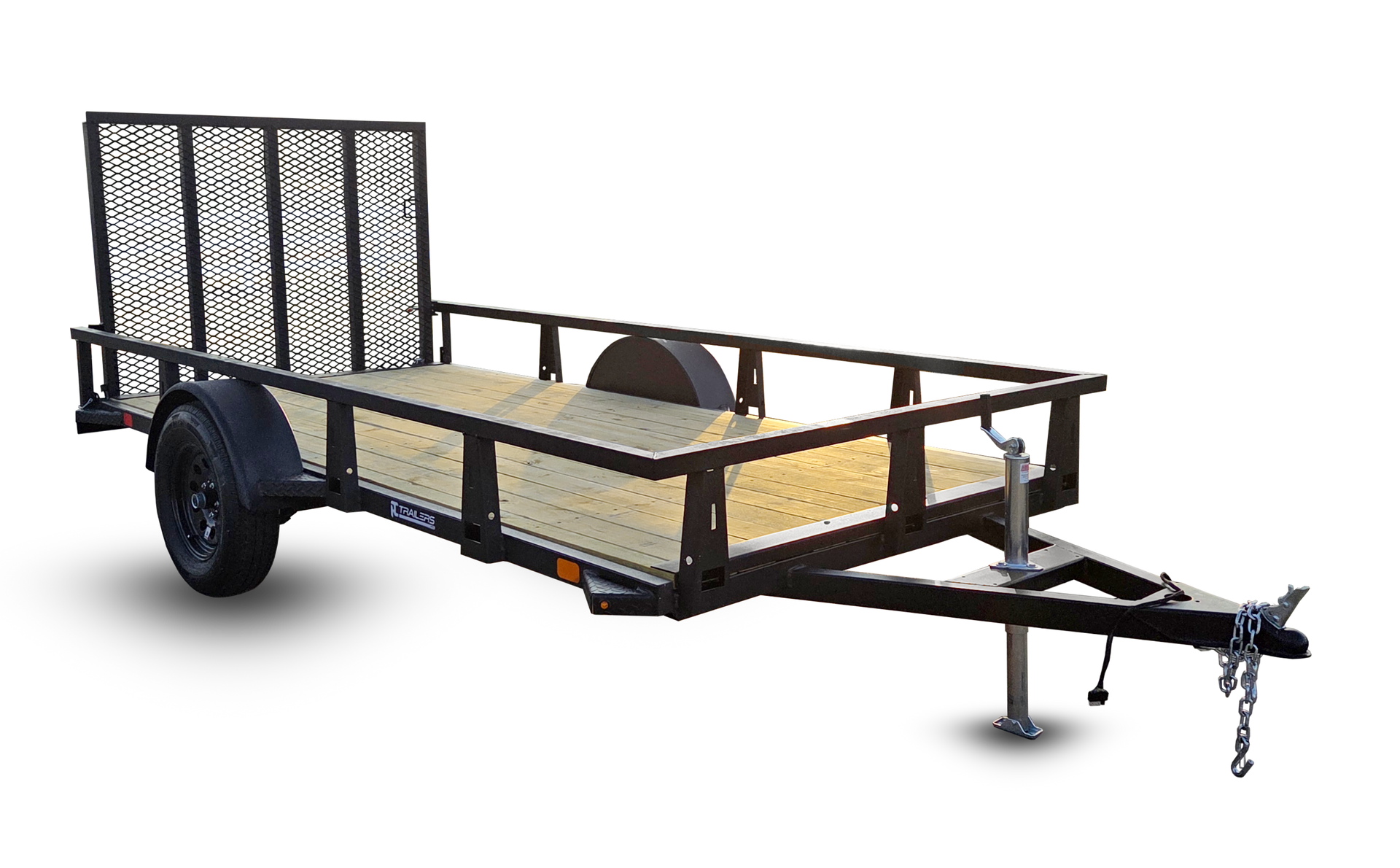

Single Axle SUT

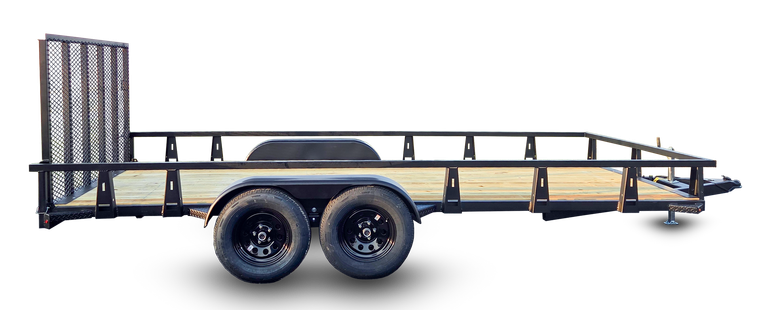

autd series sport haven trailer

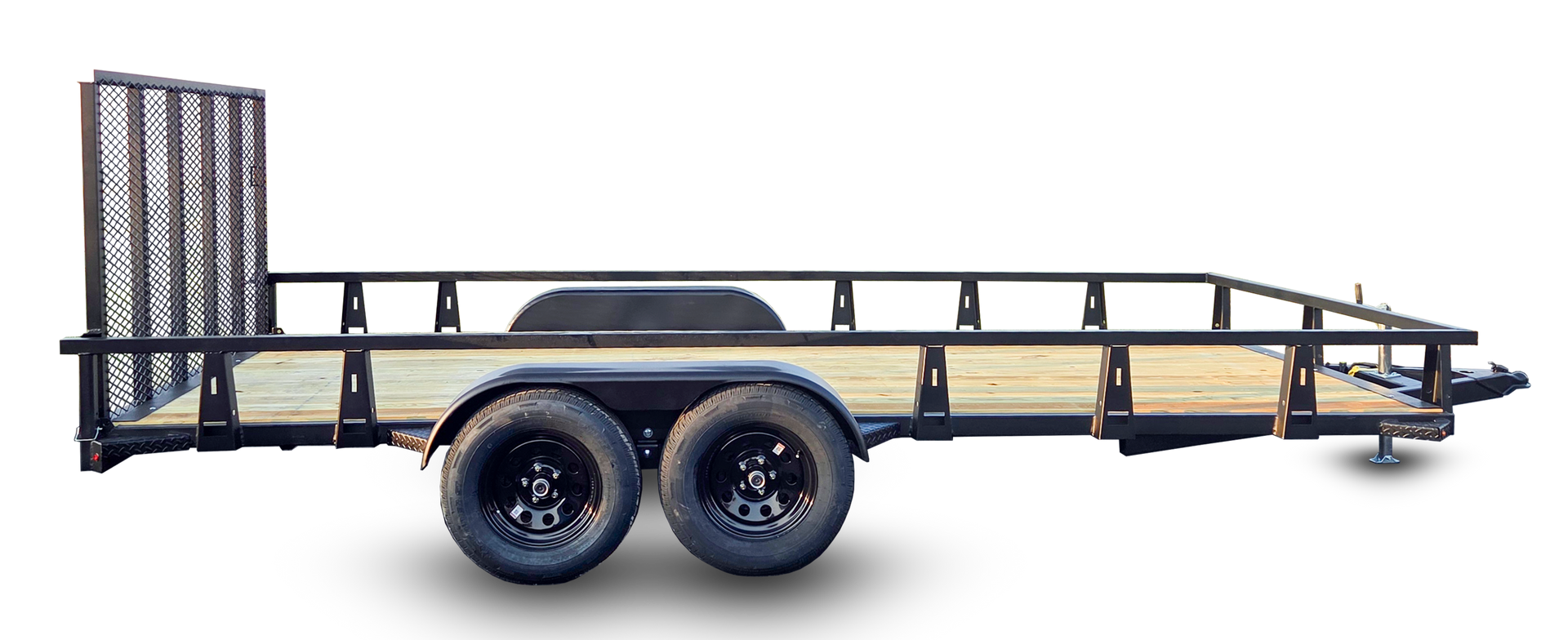

Tandem Axle SUT

(BRAKES STANDARD BOTH AXLES)

HTC Trailers Steel Tube Design

The primary purpose of an all-tube design in utility trailers is to deliver superior overall structural integrity, particularly in resisting twisting (torsional forces) and flexing during off-road or heavy-load conditions. Tubular steel (e.g., square tubing) encloses the material on all sides, creating a closed section that distributes stress more evenly and prevents deformation—essential for trailers that bounce over uneven surfaces or carry unbalanced loads. This results in a longer lifespan, better safety, and reduced maintenance compared to lighter-duty builds.

HTC Trailers Steel Tube Design

The primary purpose of an all-tube design in utility trailers is to deliver superior overall structural integrity, particularly in resisting twisting (torsional forces) and flexing during off-road or heavy-load conditions. Tubular steel (e.g., square tubing) encloses the material on all sides, creating a closed section that distributes stress more evenly and prevents deformation—essential for trailers that bounce over uneven surfaces or carry unbalanced loads. This results in a longer lifespan, better safety, and reduced maintenance compared to lighter-duty builds.

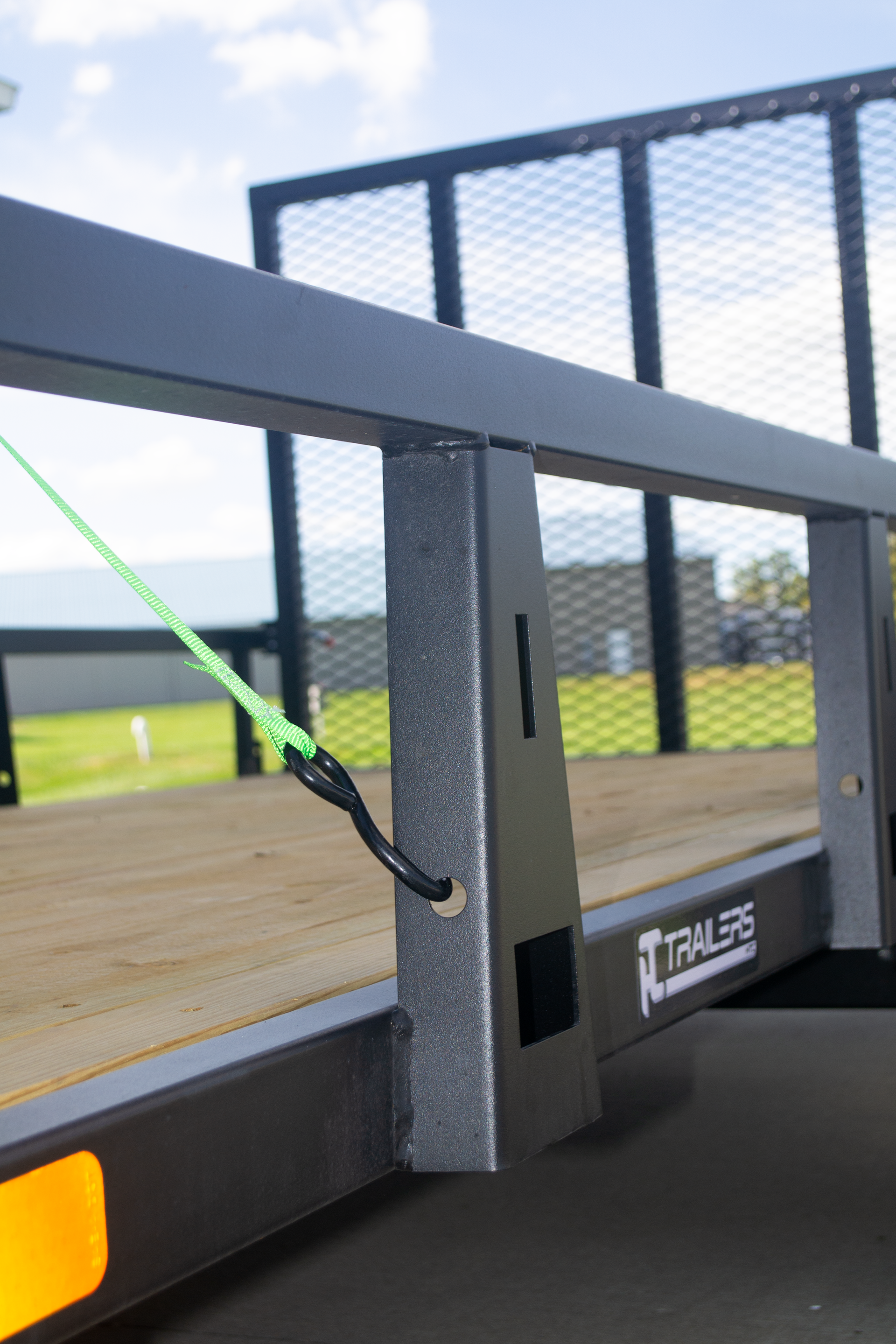

S hook tie down in multi anchor bracket

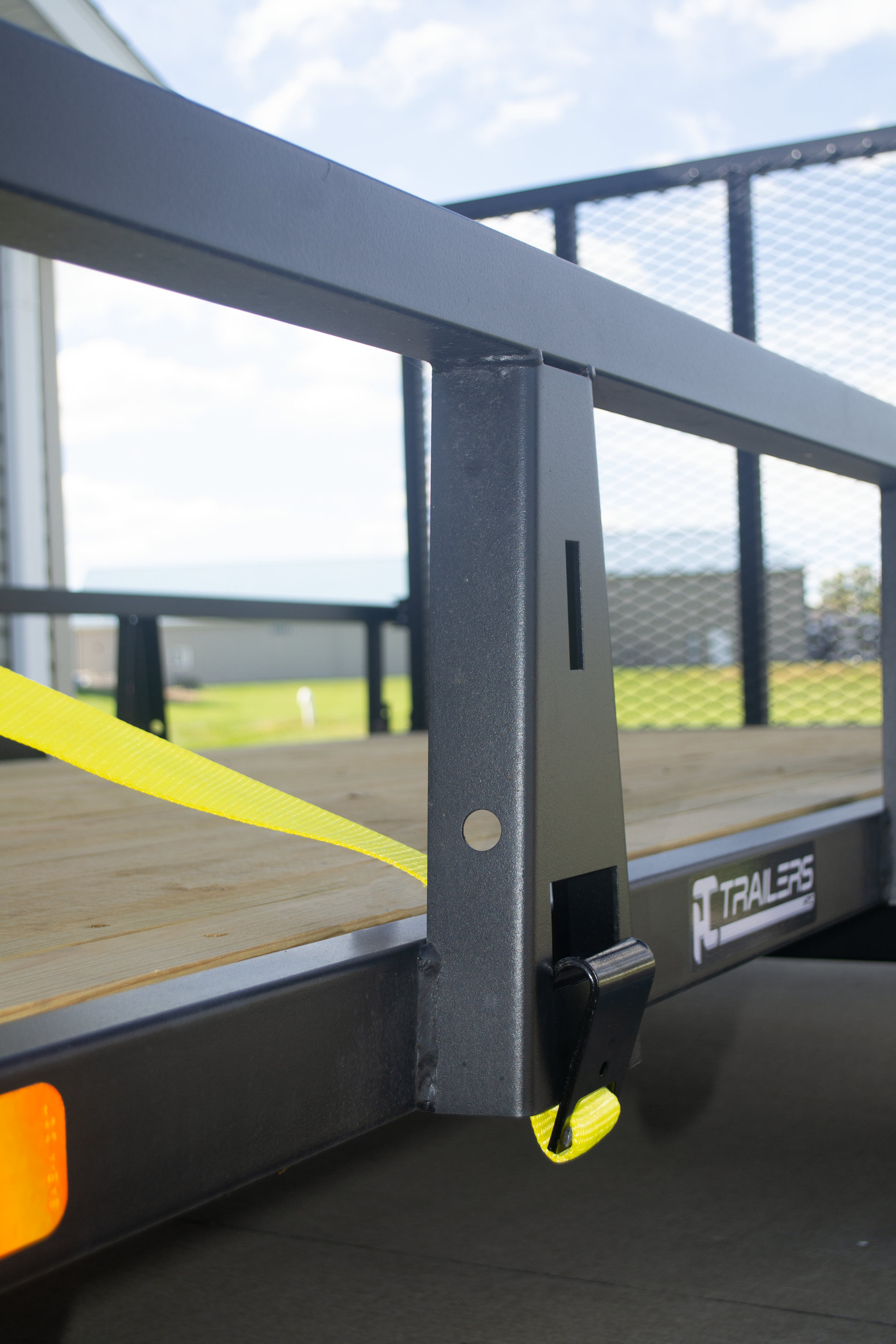

Flat hook tie down on multi anchor bracket

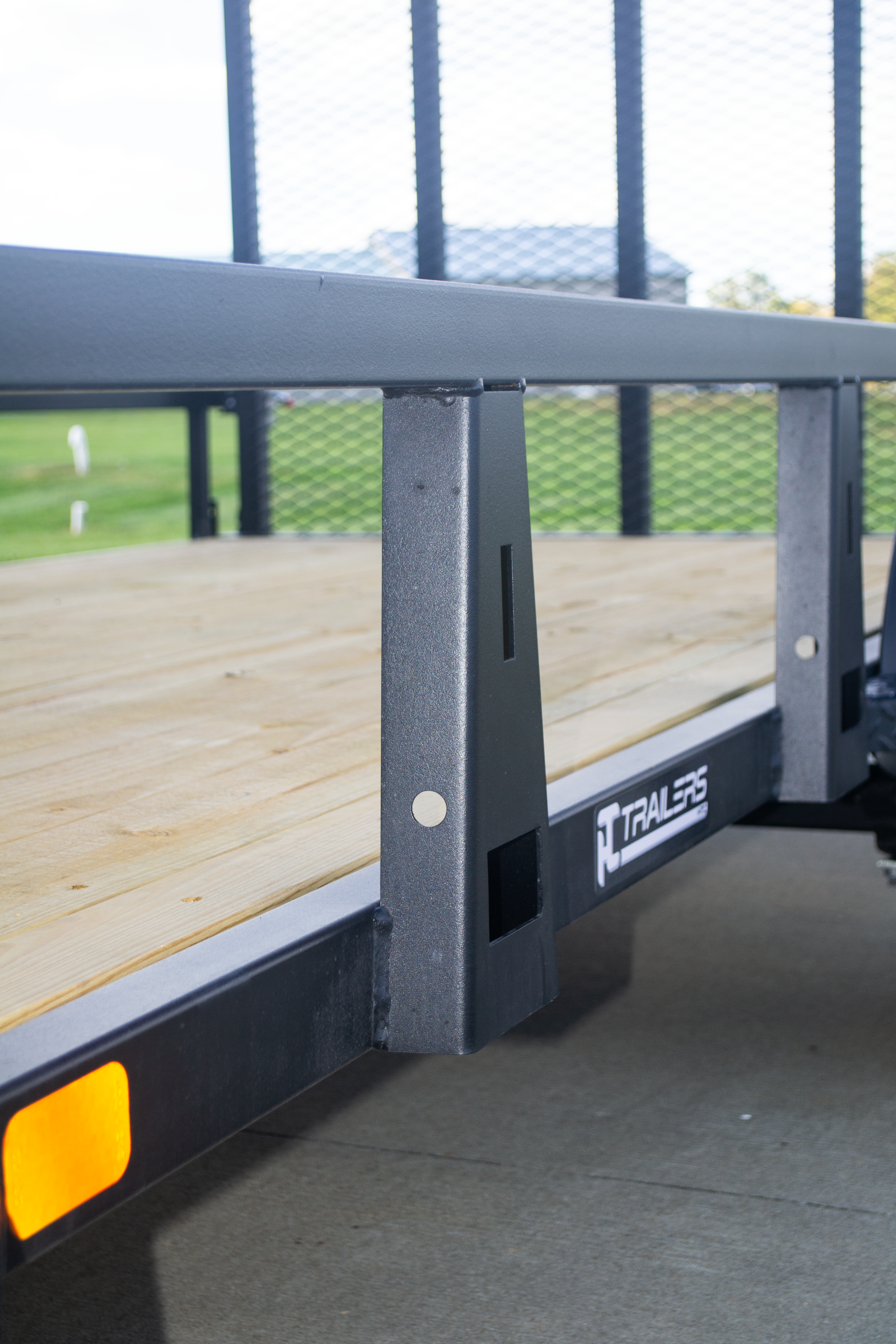

Multi anchor upright bracket on steel utility trailer

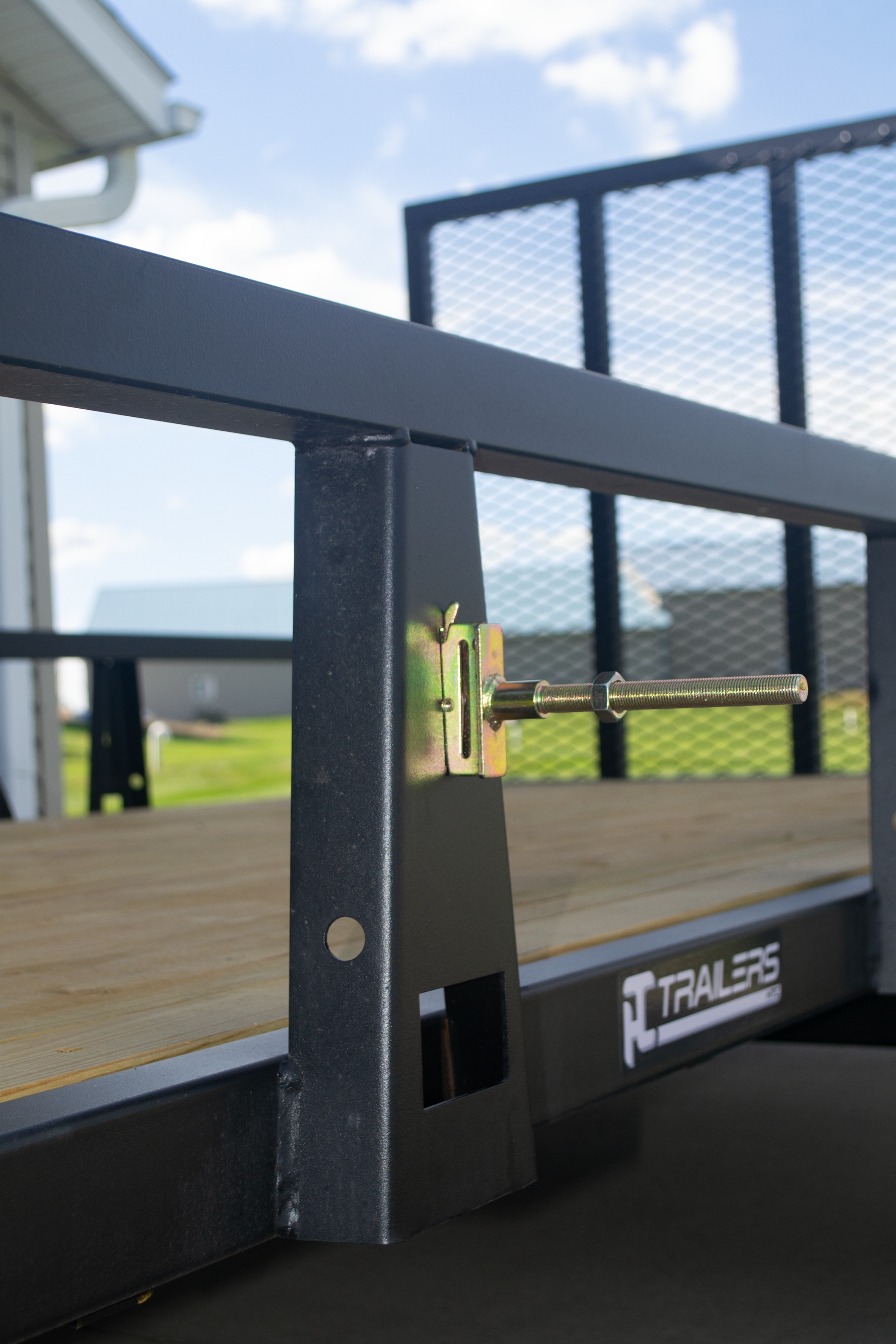

Spare tire e track holder
Anchor Management Post
Anchor Management Post Logo

The Anchor Management Post

The Anchor Management Post revolutionizes cargo securement in utility trailers by integrating robust, steel hat channel uprights with 4 holes accommodating Rope, Flat Hook, E-track, and Wire Hook loading straps. This design cuts setup time by up to 50%, reduces load-shift risks, and distributes stress evenly for enhanced trailer longevity. As a result, HTC Trailers stands out as one of the most compatible steel options, seamlessly merging traditional and modern securement in a user-friendly framework.

The Anchor Management Post

The Anchor Management Post revolutionizes cargo securement in utility trailers by integrating robust, steel hat channel uprights with 4 holes accommodating Rope, Flat Hook, E-track, and Wire Hook loading straps. This design cuts setup time by up to 50%, reduces load-shift risks, and distributes stress evenly for enhanced trailer longevity. As a result, HTC Trailers stands out as one of the most compatible steel options, seamlessly merging traditional and modern securement in a user-friendly framework.

Standard Black Steel Modular Wheels

Superior Strength and Load Capacity: Steel modular wheels are constructed from high-grade alloys, providing greater strength and the ability to handle modern trailer loads while remaining lighter than traditional solid steel designs, reducing overall trailer weight for better towability.

Optional Aluminum Wheels

Superior Corrosion Resistance: Aluminum naturally resists rust and corrosion, even in harsh, salty, or wet conditions, extending wheel life and minimizing maintenance needs.

Lightweight Design: Aluminum wheels are light, reducing the overall trailer weight to improve fuel efficiency, ease towing, and allow for greater payload capacity without exceeding GVWR limits.

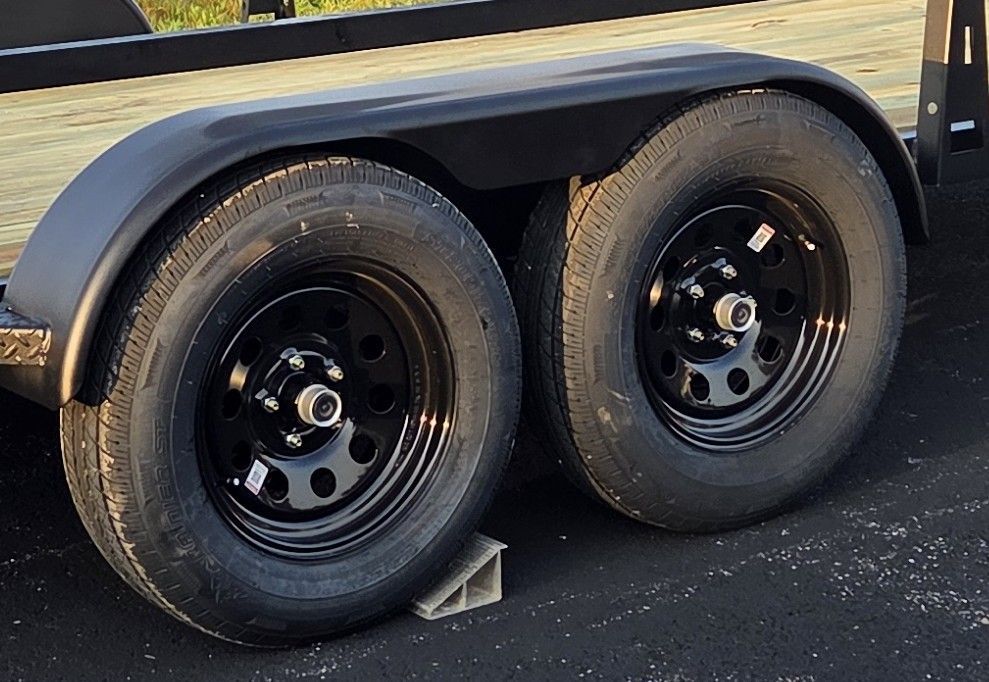

black steel wheels on tandem utility trailer

Standard Black Steel Modular Wheels

Superior Strength and Load Capacity: Steel modular wheels are constructed from high-grade alloys, providing greater strength and the ability to handle modern trailer loads while remaining lighter than traditional solid steel designs, reducing overall trailer weight for better towability.

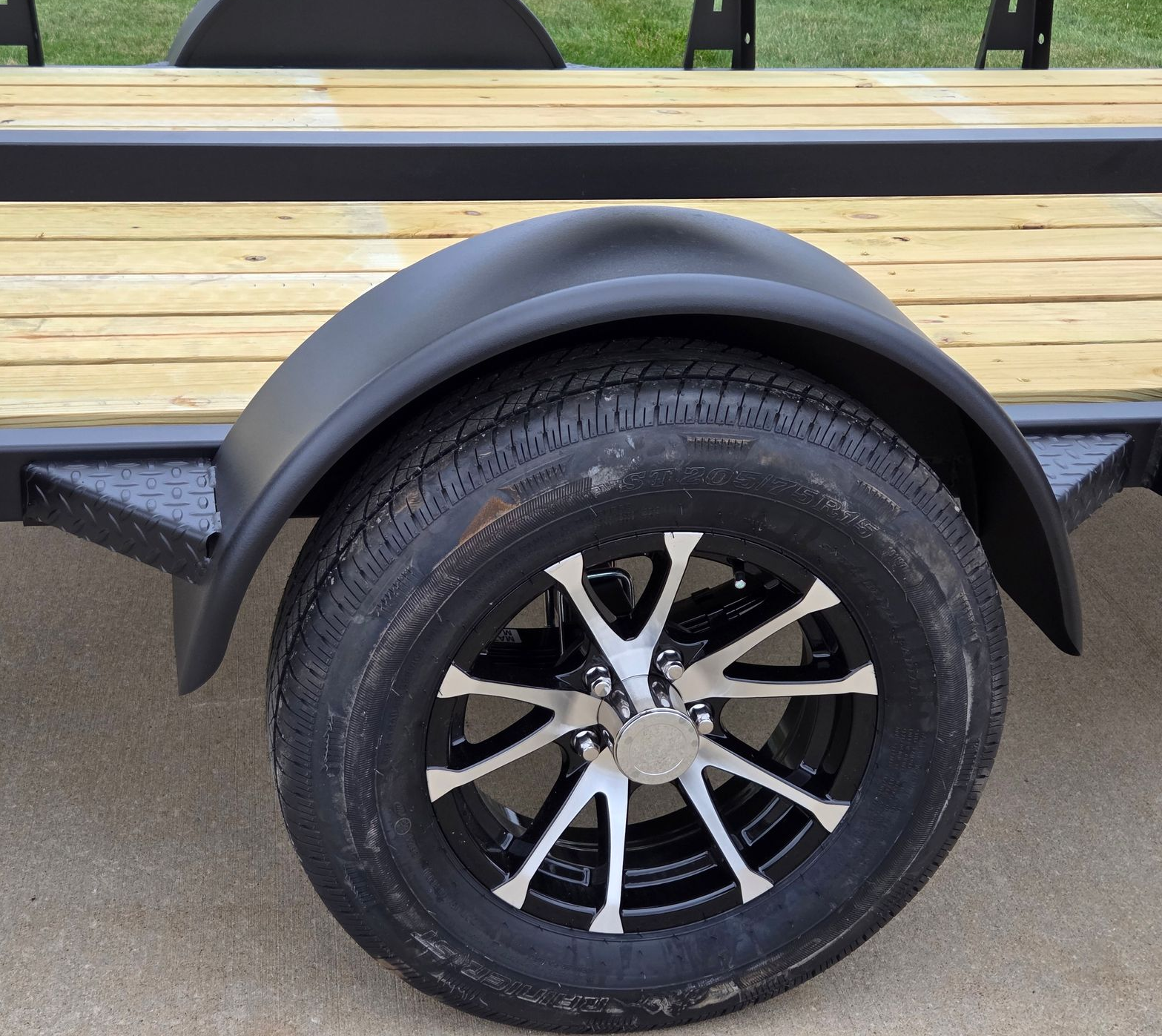

Aluminum wheel option on steel utility trailer

Optional Aluminum Wheels

Superior Corrosion Resistance: Aluminum naturally resists rust and corrosion, even in harsh, salty, or wet conditions, extending wheel life and minimizing maintenance needs.

Lightweight Design: Aluminum wheels are light, reducing the overall trailer weight to improve fuel efficiency, ease towing, and allow for greater payload capacity without exceeding GVWR limits.

Construction Specs

Additional Standard Features

  • 4 Leaf Double Eye Spring 18-3/8"

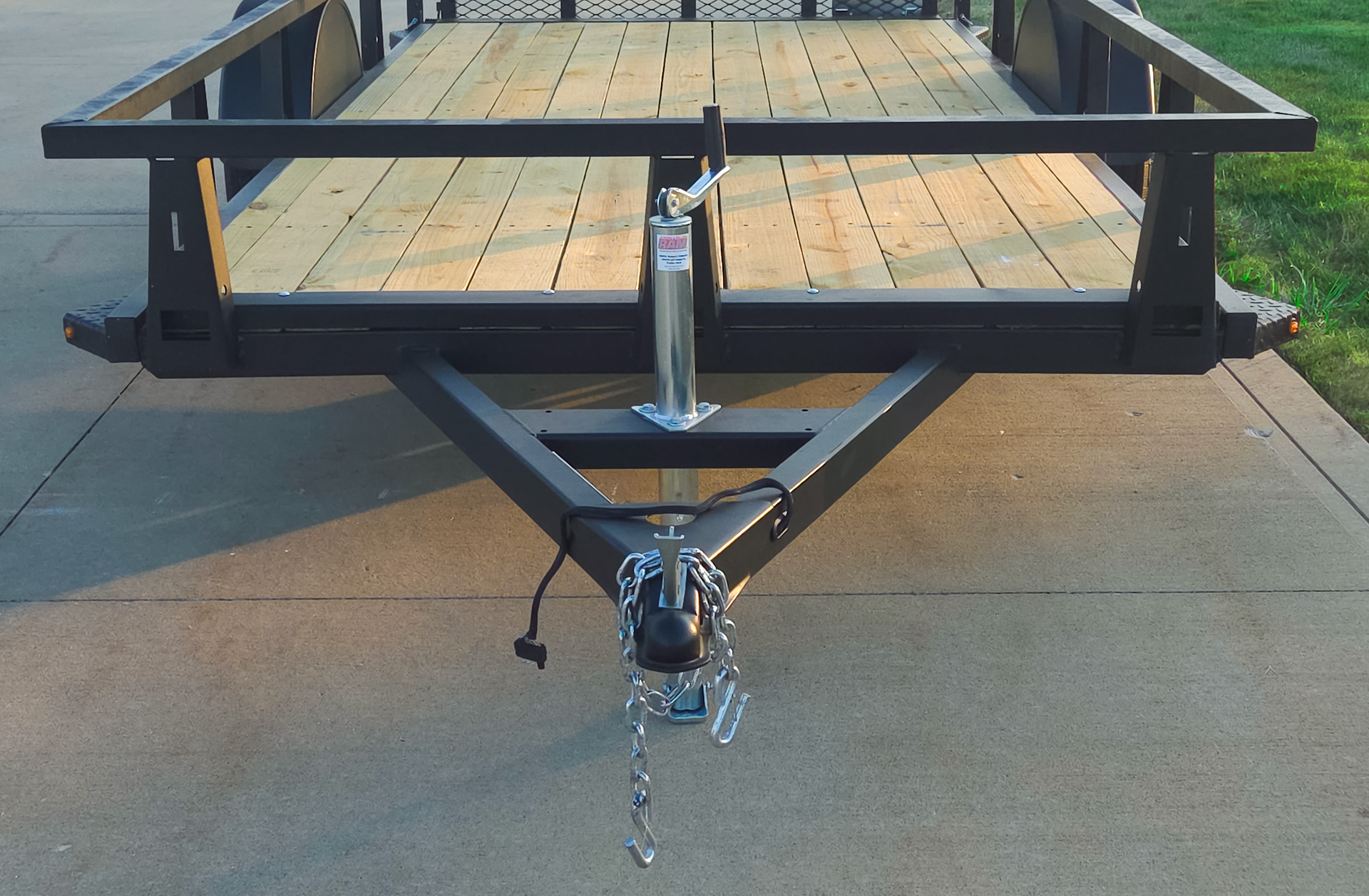

  • 2" x 3" A Frame Tongue (Single)
  • 2" x 4" A Frame Tongue (Tandem)
  • 2" x 2" Top Rails
  • 4 Way Wiring Harness (Single)
  • 5200# 1/4" Safety Chains (Single)
  • 5000# Coupler w/ 2" ball (Single)
  • 7 Way Round Harness (Tandem)
  • 14,000# w/ 2-5/16" Ball (Tandem)
  • 7600# 5/16" Safety Chains (Tandem)

Additional Standard Features

  • Steel Fenders (bolt on spring bracket/fender combo)

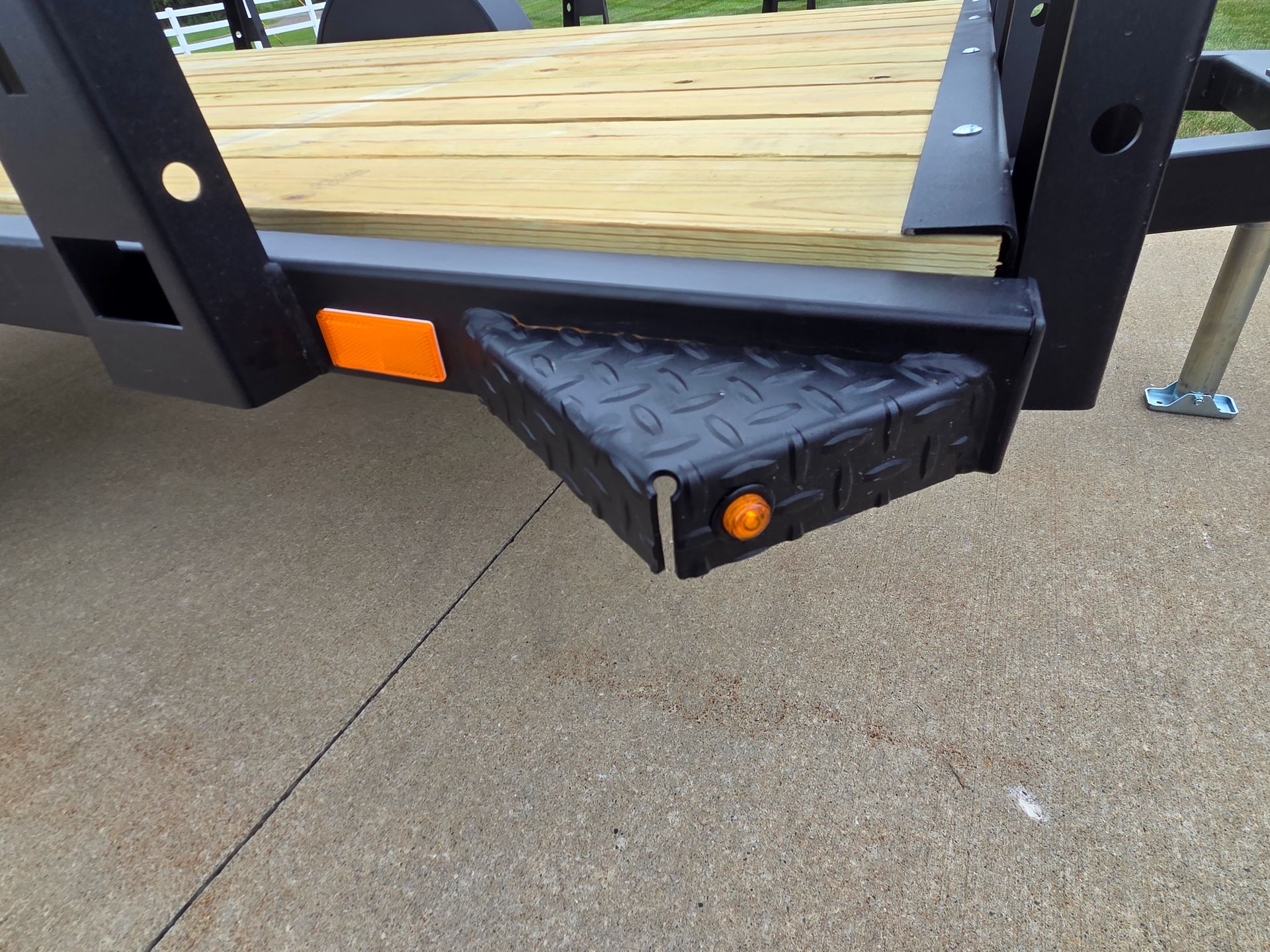

  • Diamond Plate Tread Steps
  • Lifetime Warranty LED Lighting
  • 15" Radial Tires w/Tredit Advantage
  • Polyester Black Powder Coat Paint

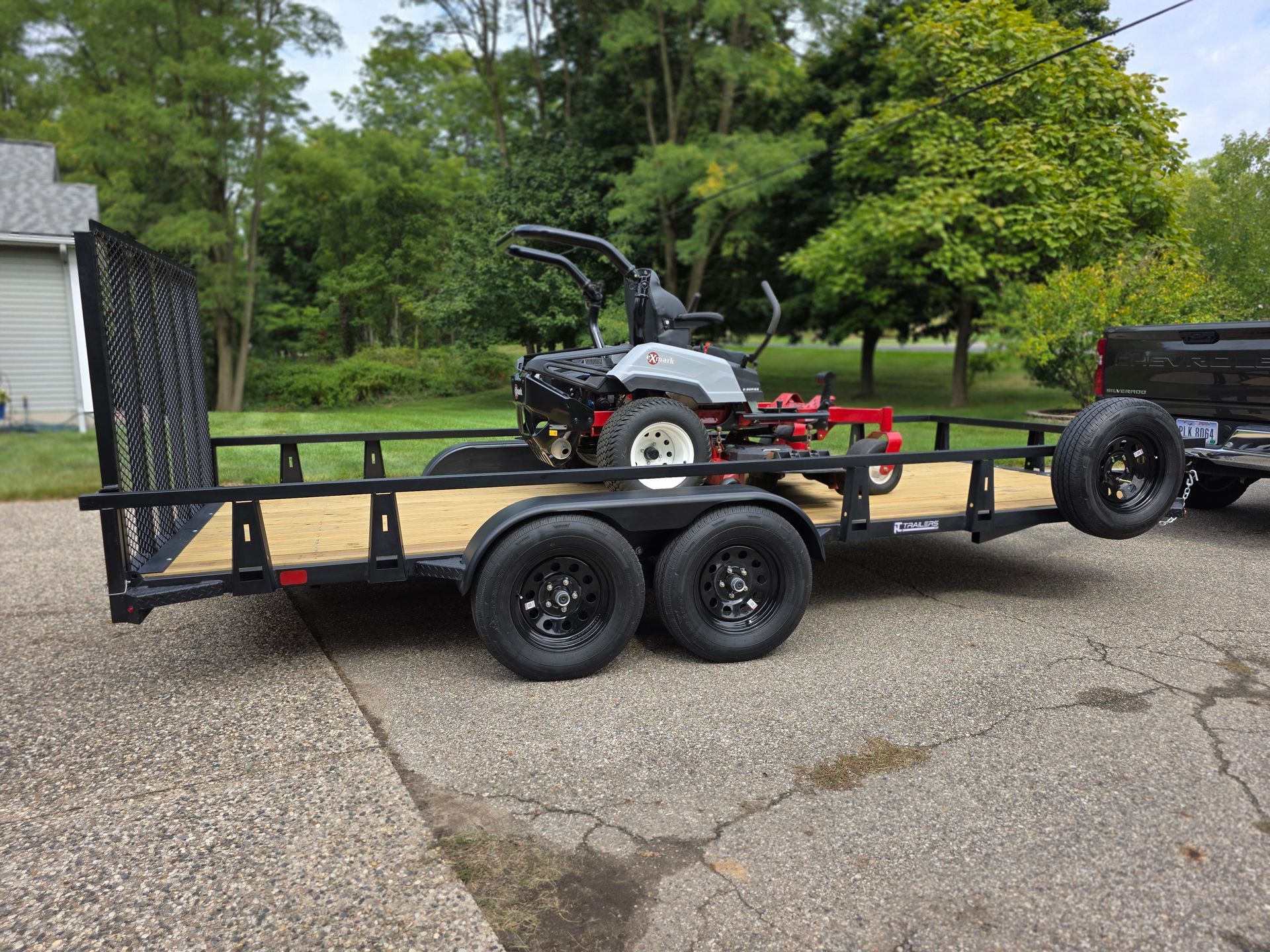

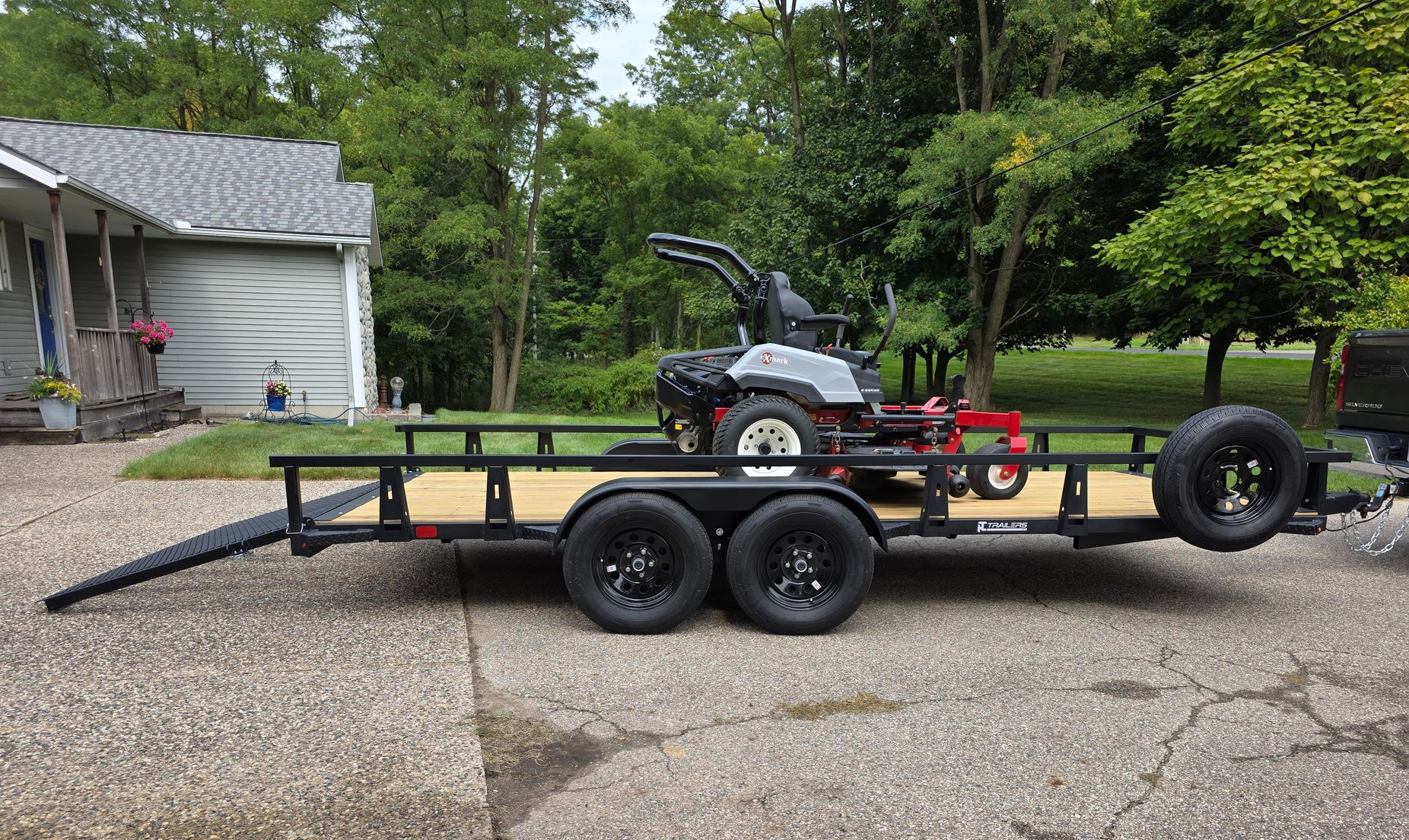

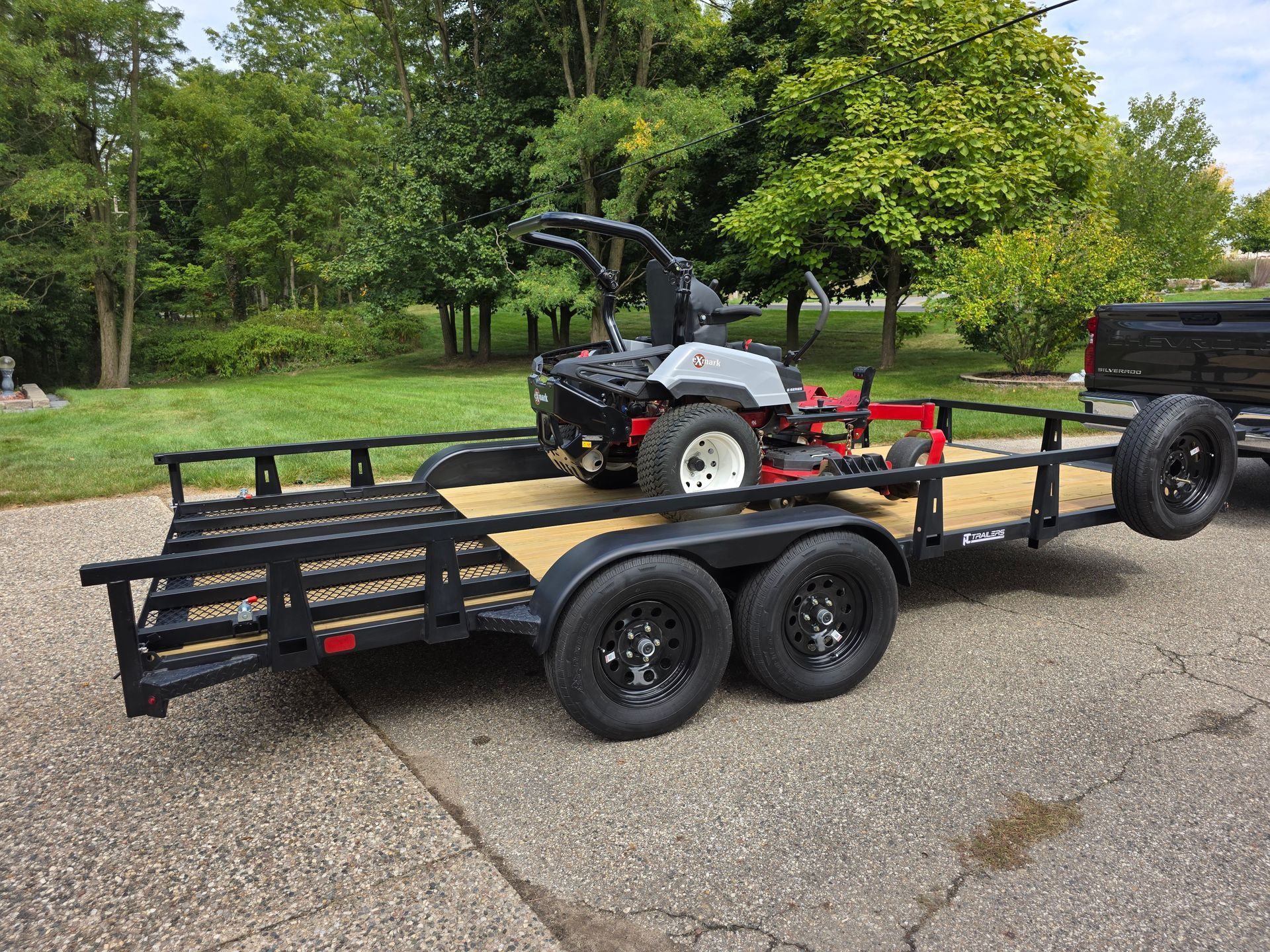

  • Spring Assist Rear Ramp

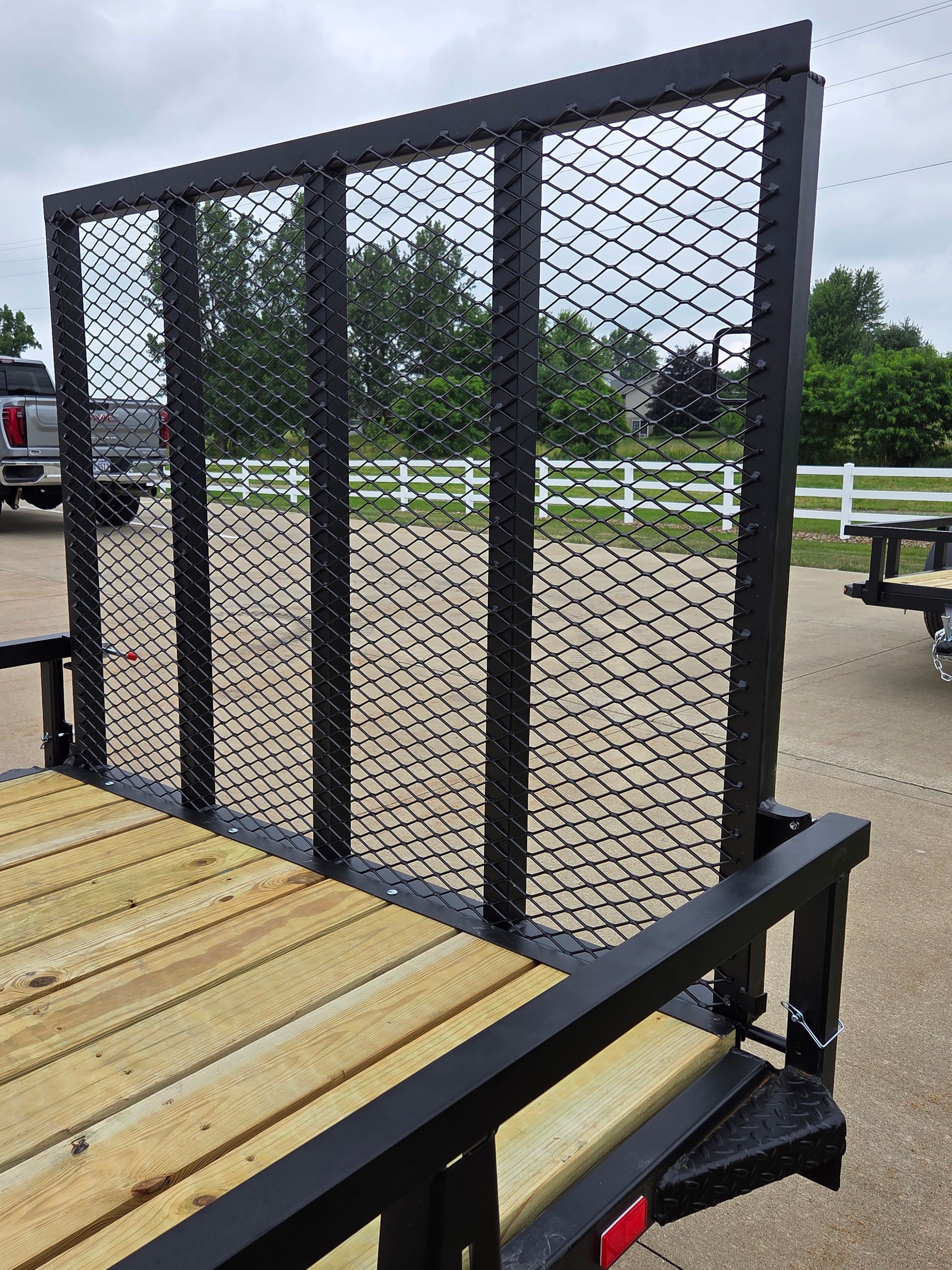

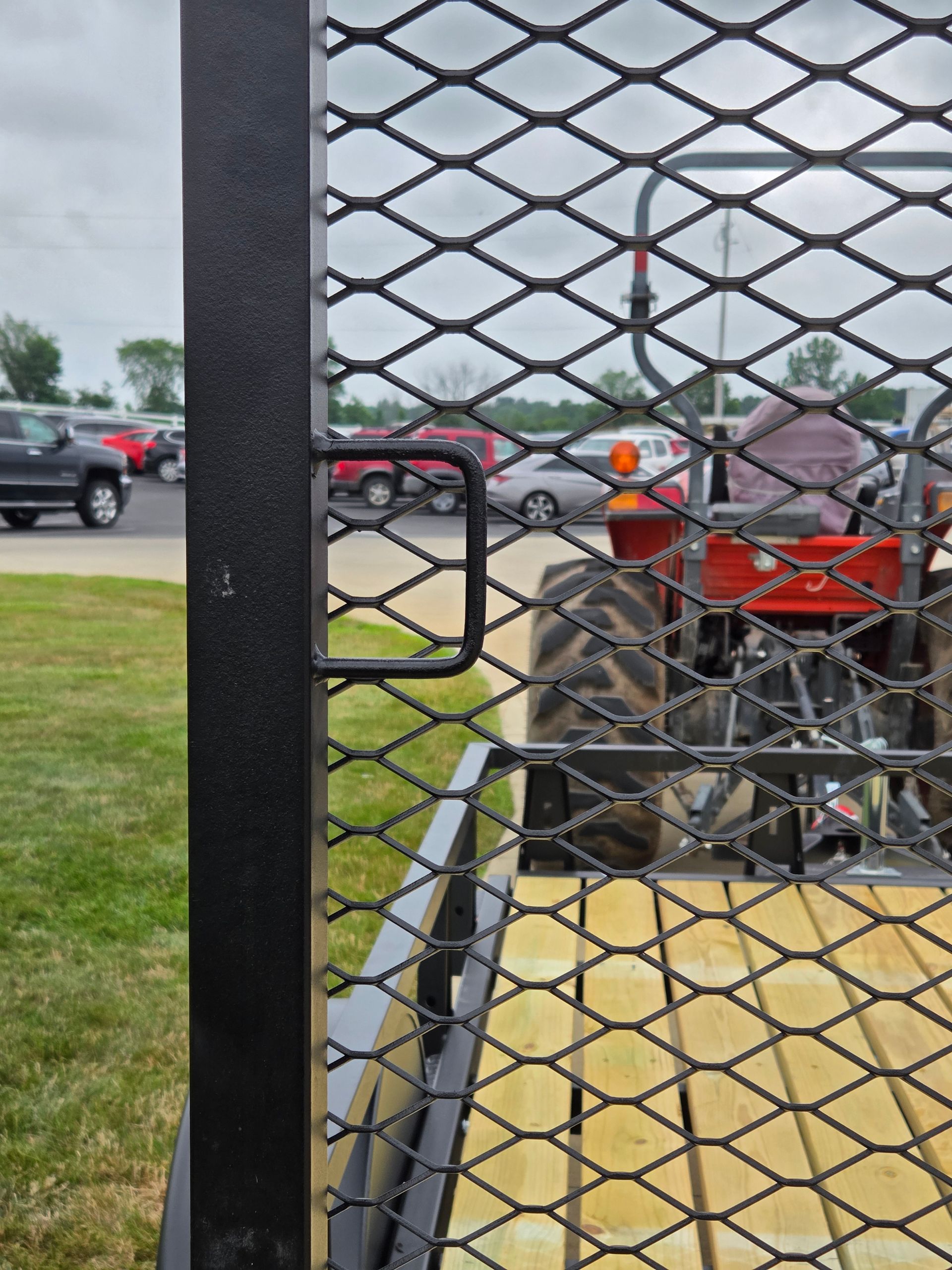

  • Easy Removable Mesh Tailgate
  • Tongue Jack w/foot pad
  • Recessed Grommet Rubber Mounted Rear Tail Lights

SINGLE AXLE TRAILERS

Model Axles / Brakes Deck Size Load Capacity GVWR Tire Size PDF Download
SUT510 1/0 5' x 10' 2164 2990 ST205/75R15 C 🖨️
SUT512 1/0 5’ X 12’ 2130 2990 ST205/75R15 C 🖨️
SUT610 1/0 6' x 10' 2130 2990 ST205/75R15 C 🖨️
SUT612 1/0 6' x 12' 2006 2990 ST205/75R15 C 🖨️
SUT712 1/0 7' x 12' 1960 2990 ST205/75R15 C 🖨️
Model Axles / Brakes Deck Size Load Capacity GVWR Tire Size PDF Download
SUT510 1/0 5' x 10' 2164 2990 ST205/75R15 C 🖨️
SUT512 1/0 5’ X 12’ 2130 2990 ST205/75R15 C 🖨️
SUT610 1/0 6' x 10' 2130 2990 ST205/75R15 C 🖨️
SUT612 1/0 6' x 12' 2006 2990 ST205/75R15 C 🖨️
SUT712 1/0 7' x 12' 1960 2990 ST205/75R15 C 🖨️

TANDEM AXLE TRAILERS

Model Axles / Brakes Deck Size Load Capacity GVWR Tire Size PDF Download
SUT712T 2/2 7' x 12' 5300 7000 ST205/75R15 C 🖨️
SUT714T 2/2 7' x 14' 5270 7000 ST205/75R15 C 🖨️
SUT716T 2/2 7' x 16' 5242 7000 ST205/75R15 C 🖨️
SUT718T 2/2 7' x 18' 5200 7000 ST205/75R15 C 🖨️
SUT720T 2/2 7' x 20' 5170 7000 ST205/75R15 C 🖨️
Model Axles / Brakes Deck Size Load Capacity GVWR Tire Size PDF Download
SUT712T 2/2 7' x 12' 5300 7000 ST205/75R15 C 🖨️
SUT714T 2/2 7' x 14' 5270 7000 ST205/75R15 C 🖨️
SUT716T 2/2 7' x 16' 5242 7000 ST205/75R15 C 🖨️
SUT718T 2/2 7' x 18' 5200 7000 ST205/75R15 C 🖨️
SUT720T 2/2 7' x 20' 5170 7000 ST205/75R15 C 🖨️
